Complete Guide to Setting Up the Topdon Tornado120000 (T120A) Power Supply

 Discover the award-winning Topdon Tornado120000 (T120A) Power Supply, recognized with the 2025 PTEN People’s Choice Award. This guide walks through its core functions and provides expert tips to maximize performance, safety, and product lifespan.

how-to-set-up-topdon-tornado120000-power-supply-1

Overview of the Topdon Tornado120000 Power Supply

The TOPDON Tornado120000 is an advanced smart programming power supply designed to deliver efficient charging and stable voltage support for 12V vehicle batteries. It automatically adjusts current output from 5–120A and voltage from 11–16.8V. With a peak power output of 1700W, it can handle a wide variety of batteries and electrical demands.

It offers three primary charging modes and a 9-step smart charging process to optimize both speed and battery health. The dot-matrix LCD provides an intuitive user interface, and eight integrated safety protections—such as reverse polarity, short circuit, and spark prevention—ensure reliable operation.

Compatible with 12V lead-acid and lithium batteries, the T120A is a versatile tool ideal for charging, automotive repair, and programming applications.

Key Features of the Topdon T120A

  • Stable Voltage Output
  • Precision Power Delivery
  • 9-Stage Smart Charging
  • Adjustable Voltage and Current
  • Comprehensive Safety Protections
  • Universal 12V Battery Compatibility
  • Dead Battery Recovery Mode
  • Battery Repair Function
  • Support for 12V Lithium Batteries

Step-by-Step Setup Guide for the Topdon Tornado120000

Follow these recommendations to improve performance, extend the product’s life, and prevent errors during automotive procedures.

1. Allow the Fan to Complete Its Cooling Cycle

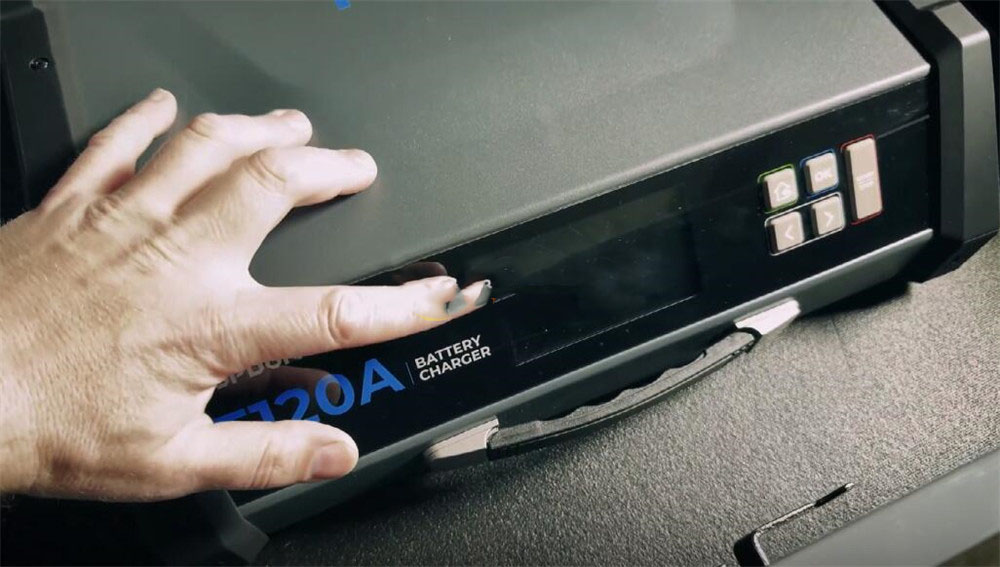

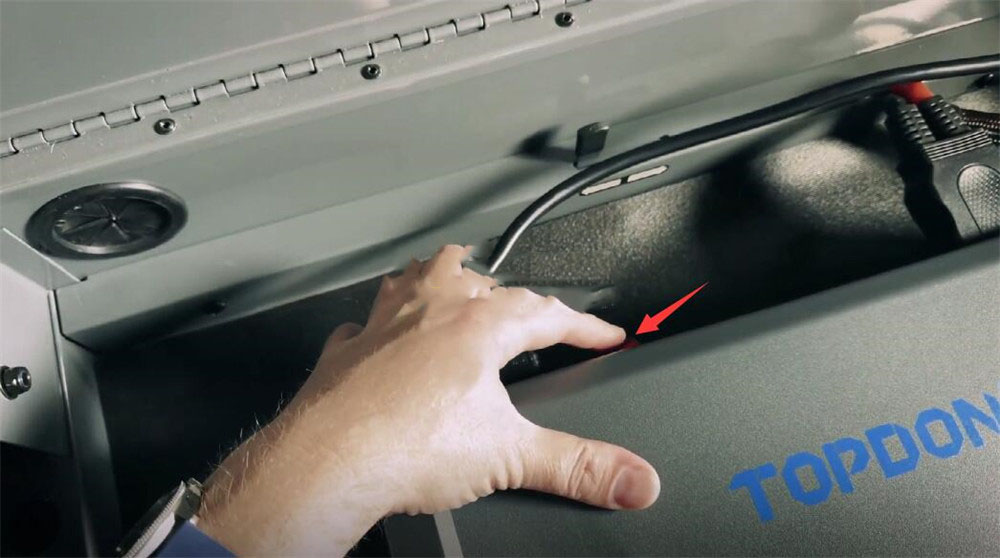

Every Tornado unit includes an internal cooling fan that may continue running after use. It is essential to let the fan operate until it turns off automatically before disconnecting AC power or switching off the device. This prevents overheating and is critical for long-term reliability.

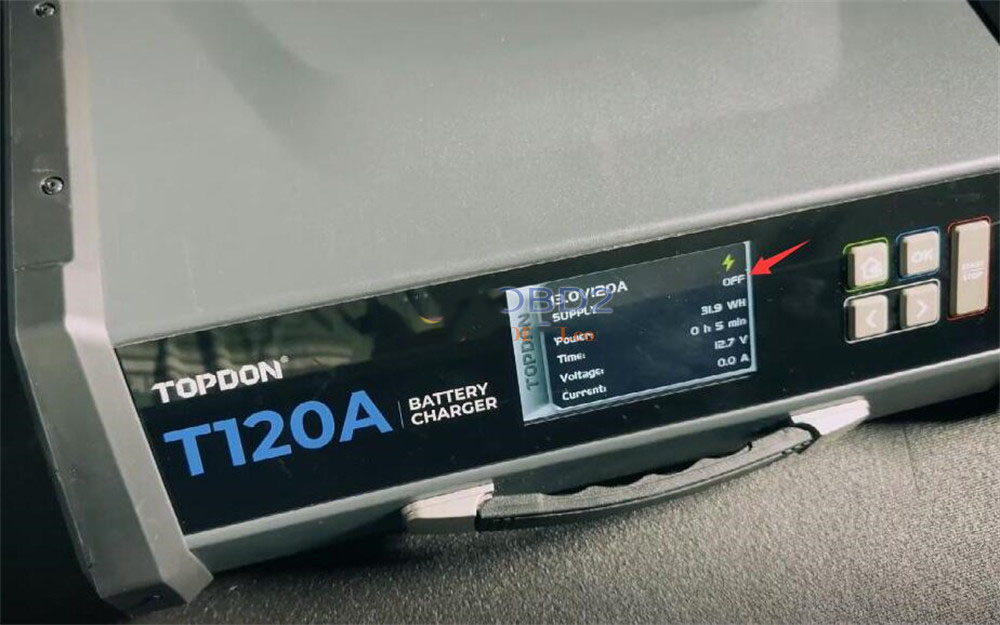

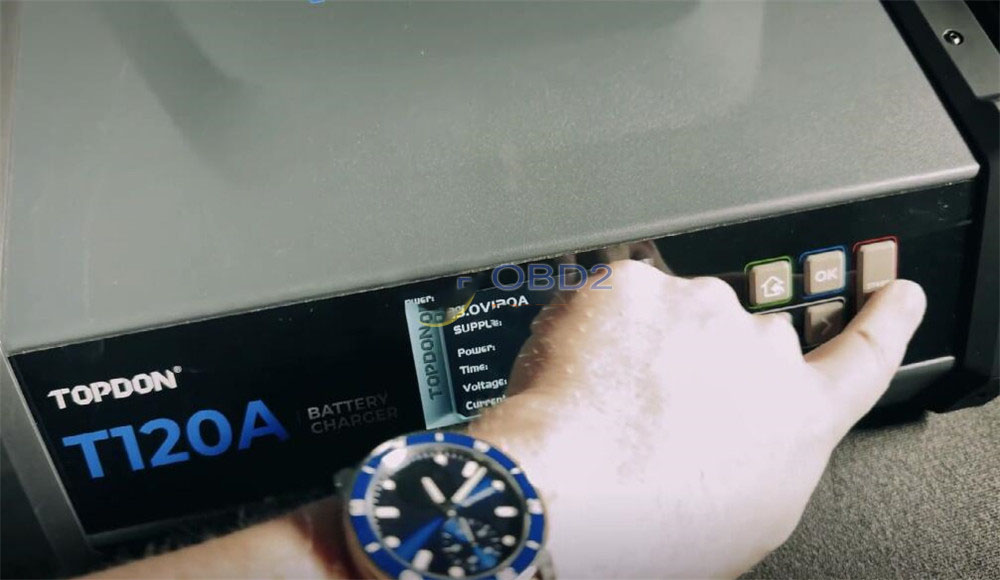

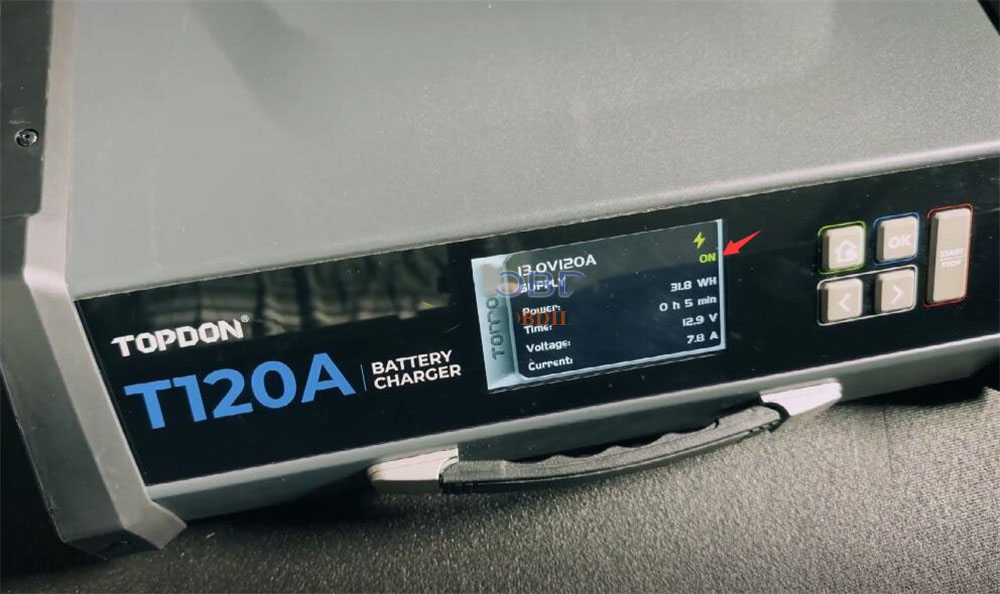

how-to-set-up-topdon-tornado120000-power-supply-2how-to-set-up-topdon-tornado120000-power-supply-3how-to-set-up-topdon-tornado120000-power-supply-4how-to-set-up-topdon-tornado120000-power-supply-5how-to-set-up-topdon-tornado120000-power-supply-6

2. Select the Correct Power Outlet (USA & Canada)

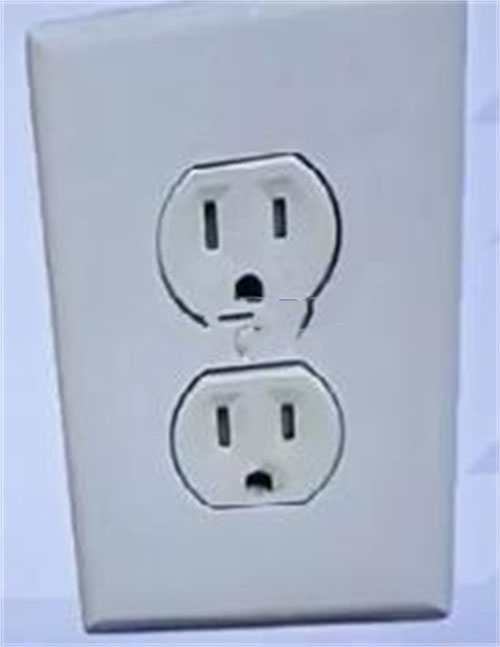

Standard 15-Amp Outlet: Use this for tasks where current stays below 80 amps. Suitable for most common operations.

how-to-set-up-topdon-tornado120000-power-supply-7

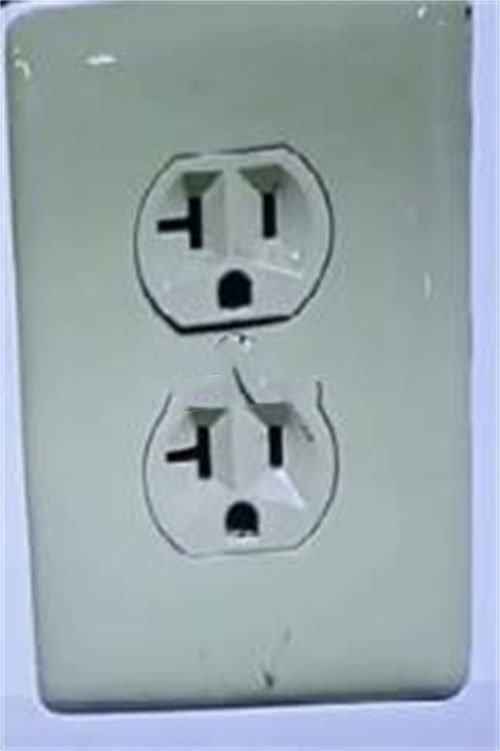

20-Amp Outlet (with horizontal pin): Necessary for high-power operations such as programming modern European vehicles or complex electronic systems where current may exceed 80 amps. Important: Ensure the outlet is connected to a dedicated 20-amp circuit breaker. Using a 20-amp outlet on a 15-amp circuit is a safety risk.

how-to-set-up-topdon-tornado120000-power-supply-8

3. Use a Properly Rated Extension Cord

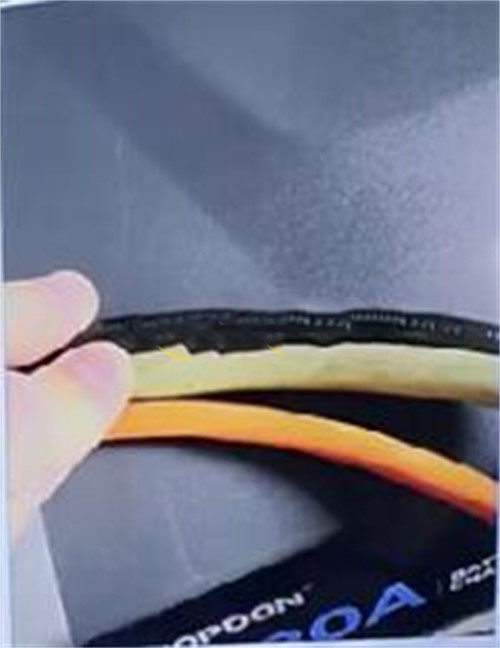

If using an extension cord, ensure its wire gauge is equal to or thicker (lower gauge number) than the Tornado's power cord. An undersized cord can cause performance loss, voltage drop, and potential fire hazards.

how-to-set-up-topdon-tornado120000-power-supply-9

4. Pre-Charge the Vehicle Battery

Always fully charge the vehicle's 12V battery before using Stable Voltage Supply mode for sensitive operations, including:

  • ECU Programming
  • Key-On-Engine-Off (KOEO) Diagnostics
  • Module Calibrations
  • Wheel Alignment Procedures

Using the Tornado’s charging function to pre-charge the battery ensures voltage stability during extended operations. This is a fundamental step for all Tornado power supply models.

By adhering to these guidelines, you can achieve optimal reliability and safety from your Topdon Tornado T120A power supply. Designed for professional use, the T120A delivers exceptional performance when used correctly.
